E-ACTV 100, High Frame

⚙️ Motor & Performance

• Motor: Rear wheel Rockrider brushless 36V.
• Power: 250W (max, EU standard).
• Torque: 45 Nm — perfect for moderate hills (up to 10% gradient).
• Assistance cutoff: 25 km/h (in compliance with EU law).
• Ideal for: City and light trekking routes — not recommended for steep mountain climbs

🔋 Battery & Range

• Battery: 36V, 356Wh lithium-ion (removable & lockable).
• Range: up to 70 km (Eco), 50 km (Normal), 30 km (Boost).
• Charging: full in 4.5h with 2A charger (included).
• Weight: 2.3 kg.
• Battery life: guaranteed 500 charge cycles with no loss of autonomy.
• Can ride with empty battery: yes, slightly heavier than a standard trekking bike.

Compatible with Rockrider 4A charger (Ref. 8753941) for faster charging.

📱 Display & Connectivity

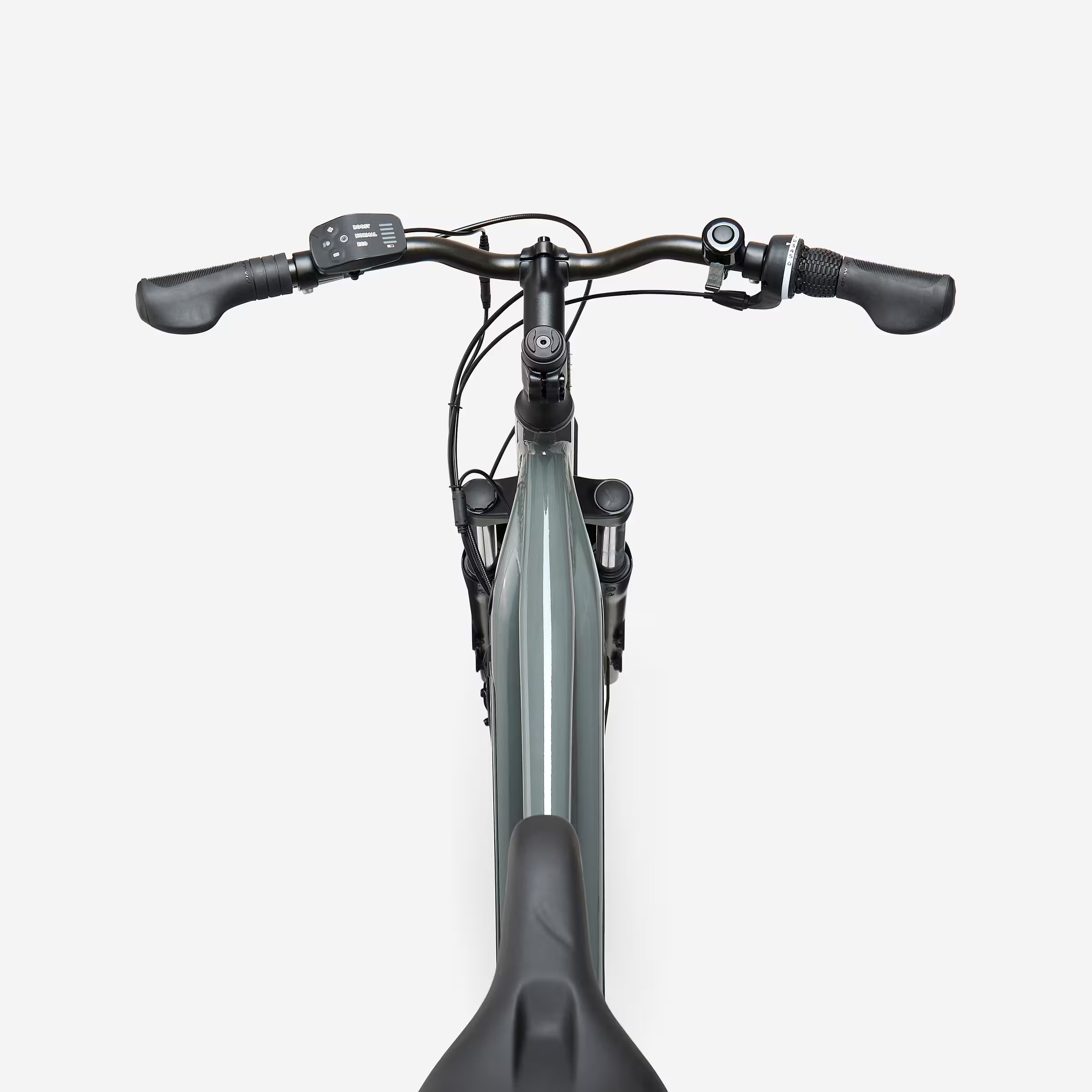

• LED display (on handlebar, left side).
• Shows: assistance mode, battery level, lights ON/OFF.
• Functions: power ON/OFF, mode selection, light control.

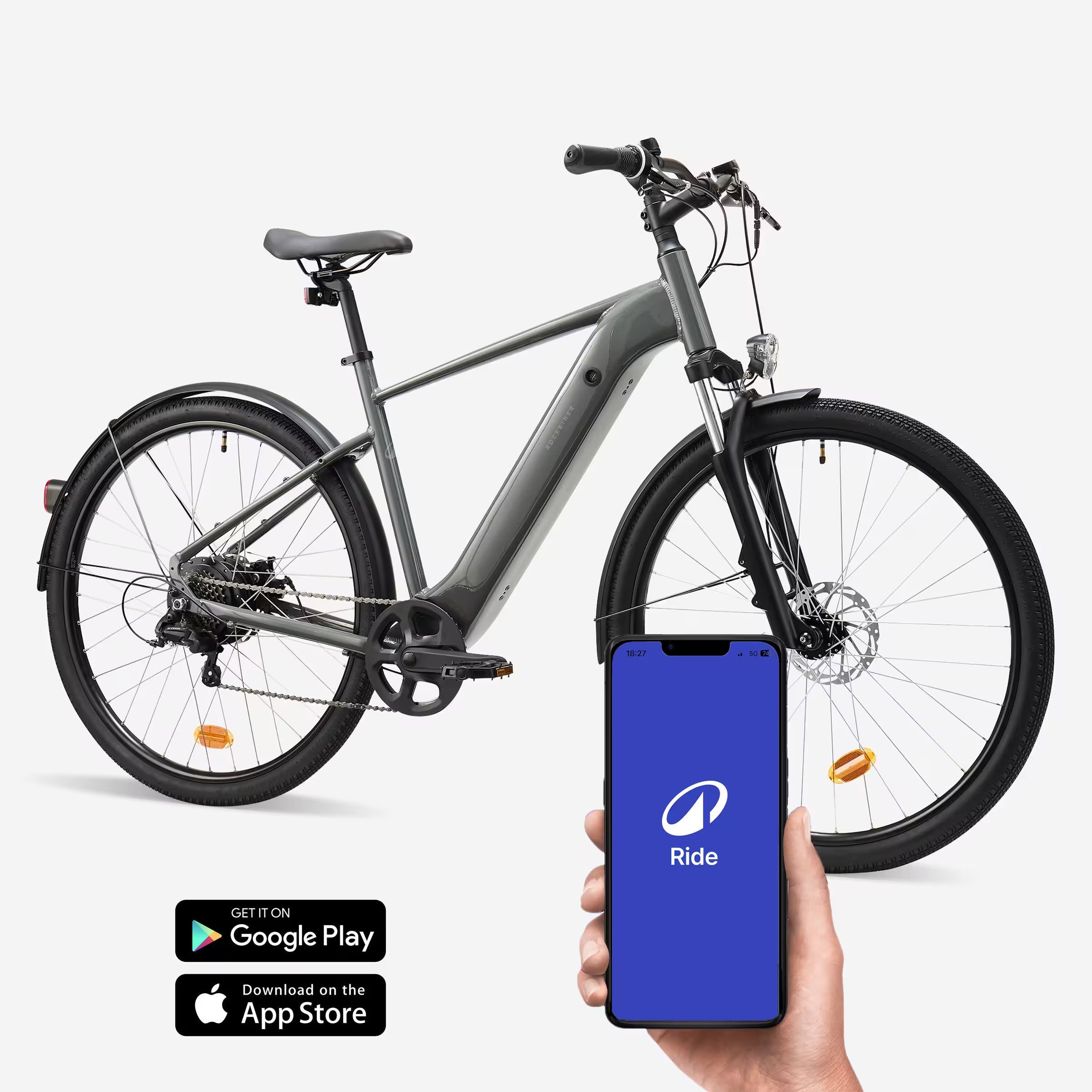

• Bluetooth connectivity with the Decathlon Ride app for:
• Live speed, distance & remaining range.
• Ride route tracking & stats.
• Mode usage insights.
• Firmware updates.
• Integrated SP Connect mount for your smartphone — easy, secure attachment (case sold separately).

💡 Lighting & Protection

• Front light: AXA Echo 15 LED (15 lux).
• Rear light: LED (stays on 4 min after shutdown).
• Water & dust resistant (IPX5).
• Do not clean with high-pressure water.



🚴‍♀️ Ride & Comfort

• Front suspension: Rockrider Trekking (60mm spring travel).
• Ergonomic BTWIN City 500 grips.
• Adjustable handlebar position.
• Comfort Trekking saddle.
• Aluminum frame with hydroformed down tube.
• Weight: 22.9 kg (L/XL).
• Max load: 120 kg (rider + cargo).

⚙️ Transmission

• 6-speed Microshift drivetrain with twist shifter.
• Crankset: 44T single chainring.
• Freewheel: 14–28T.
• KMC anti-corrosion chain (quick link).
• Rear derailleur: Microshift RD M21.
• Chain guard & anti-drop ring included.

🛞 Wheels & Tires

• Tires: Rockrider Trekking 700x47mm, 4.5/5 puncture protection.
• Double-wall rims (25-622 ETRTO).
• Non-tubeless.
• Recommended pressure: 3 bars.
• 32 spokes front / 36 spokes rear.
• Sealed bearings.
• Rear hub: motor axle with nuts (19mm wrench required).

🛠️ Brakes

• Mechanical disc brakes, 160mm rotors front & rear.

🧳 Practical Details

• Frame versions:
• Low step: easy access, ideal for child seat use (Ref. 8893262).
• High step: more stiffness and precision (Ref. 8893260).
• Sizes:
• S/M: 1.50 – 1.72 m
• L/XL: 1.72 – 1.95 m
• Choose smaller for upright posture or larger for sportier position.


• Compatible accessories:
• Rear kickstand (Ref. 8784182)
• Rear rack (Ref. 8828232)
• Frame lock (Ref. 8735625)
• Child seats (frame or rack mount)
• Bottle cage (1 built-in + optional textile mount Ref. 8487122)
• Bike trailers: Hamax and Bike Original (not Thule or Croozer).


• Full mudguard clearance: 6 mm from tire — ideal for gravel and dirt paths.



🏗️ Build & Warranty

• Frame: aluminum, lifetime warranty.
• Stem & handlebar: lifetime warranty.
• Electrical components & parts: 2-year warranty.
• Water-resistant electronics (IPX5).
